Drukschakelaar

Momenteel helaas uitverkocht

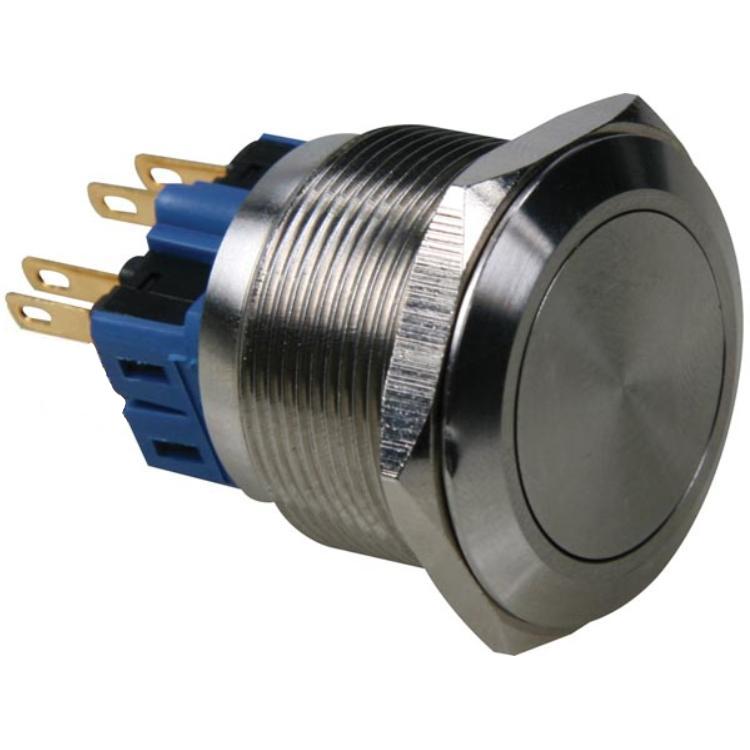

Drukschakelaar - Zilver,
Type: Druk - Verbreekcontact,
Extra: (on)-off,
Voltage Max.: 12V,
Stroom Max.: 0.5A,
Verpakt per stuk.
Productcode: 1064014
€ 13,79 (Incl. BTW)
Productcode: 1064014
Meer artikelen? Meer korting!
Aantal 1-9: € 13,79Aantal 10-49: € 13,31Aantal 50-249: € 12,14Aantal 250+: € 11,03
Meer informatie over dit product

DPST 1NO 1NC
colour: -
power supply LED ring: -
type: (on)-off
connections:
NC (normal closed): 1-2
NO (normal open): 3-4
operating temperature: -20°C ~ +70°C
operating humidity: 45 ~ 85% RH
insulation resistance: > 1000M ohms
contact resistance: < 50M ohms
mechanical life: 1 000 000 cycles
electrical life: 50 000 cycles
dielectric strength:
between terminals of the same pole: -
between terminal of different poles: 2000VAC
body material: stainless steel
operating pressure: 3~8N
IP rating: IP65
max. Voltage:
230VAC / 5A

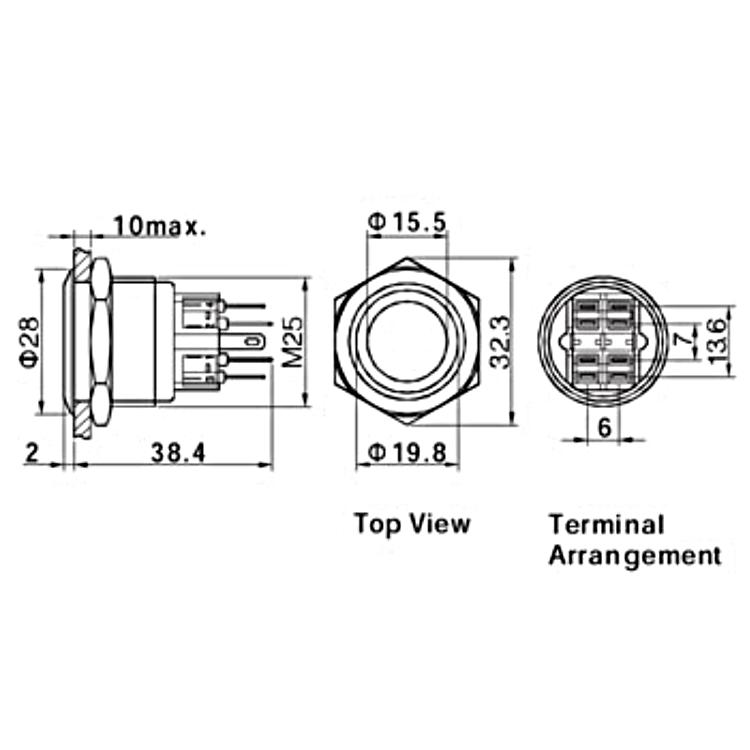

mounting hole: Ø25mm

Specificaties

Drukschakelaar - Zilver
TypeDruk - Verbreekcontact
Extra(on)-off
Voltage Max.12V
Stroom Max.0.5A
Verpakt per stuk
